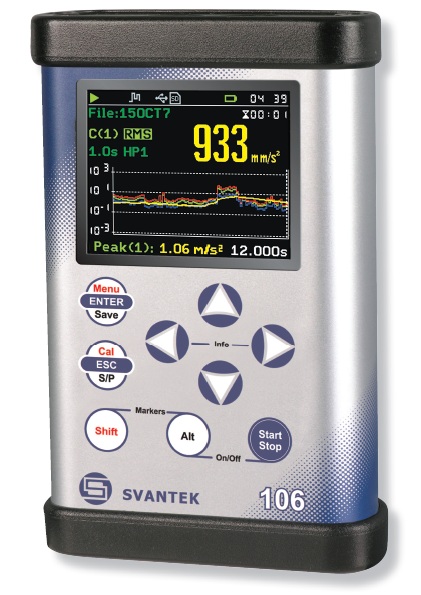

Human Vibration Meter & Analyser:


  • Human Vibration measurements meeting ISO 8041:2005, ISO 2631-1,2&5 (including VDV and MTVV) and ISO 5349
  • Six channels for acceleration and two channels for static force measurements
  • Each channel with two profiles
  • Whole-Body measurements:
    - Low-cost and low power seat accelerometer SV 38V
  • Hand-Arm measurements:
    - SV 105A integrated triaxial accelerometer including hand straps
    - SV 107 integrated triaxial accelerometer including hand straps and grip force sensor
    - SV 150 triaxial accelerometer with adapter for direct attaching to hand-held power tools
  • Time-domain signal recording (meeting ISO 2631-5)
  • 1/1 and 1/3 octave real-time analysis
  • Advanced data logger including spectral analysis
  • MicroSD flash card for mass data storage
  • USB 1.1 Client interface
  • A(8) daily exposure automatic calculation
  • SvanPC++ software for easy instrument set-up and data download
  • Easy in use, user friendly interface with colour display
  • Pocket size (140 x 83 x 33 millimetres) weight only 390 grams including batteries
